4x8

One Box Contains:
(49"x49"x5", 50 lbs.)

• (2) 48” x 48” x 2” Modules
• (4) Black EZ Pad connectors*
• (4) #3 Phillips size 14, 1-inch screws

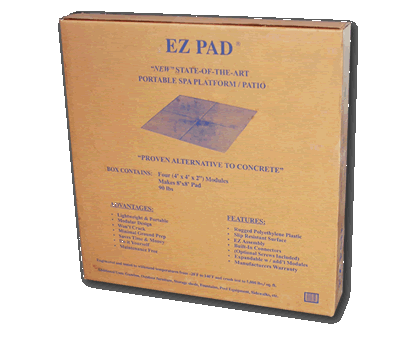

8x8

One Box Contains:
(49"x49"x9", 98 lbs.)

• (4) 48” x 48” x 2” Modules
• (8) Black EZ Pad connectors*
• (16) #3 Phillips size 14, 1-inch screws

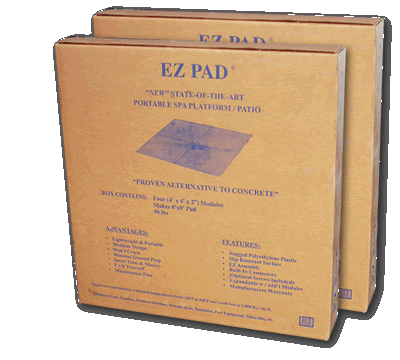

8x12

Two Boxes Contain:
(49"x49"x9", 98 lbs., 49"x49"x5", 54 lbs.)

• (6) 48” x 48” x 2” Modules
• (14) Black EZ Pad connectors*
• (28) #3 Phillips size 14, 1-inch screws

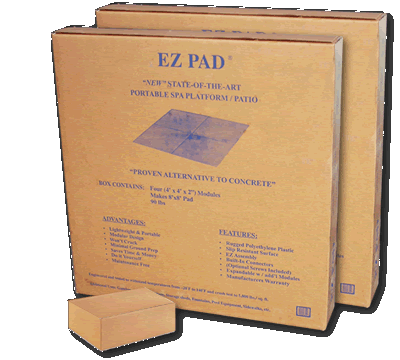

8x16

Three Boxes Contain:
(49"x49"x9", 98 lbs., 49"x49"x9", 98 lbs., 4"x8"x14", 2 lbs.)

• (8) 48” x 48” x 2” Modules
• (20) Black EZ Pad connectors*
• (40) #3 Phillips size 14, 1-inch screws

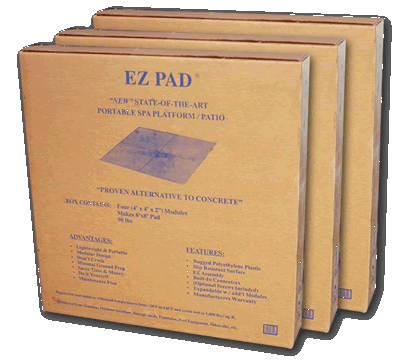

8x20

Three Boxes Contain:
(49"x49"x9", 98 lbs., 49"x49"x9", 98 lbs., 49"x49"x5", 54 lbs.)

• (10) 48” x 48” x 2” Modules
• (26) Black EZ Pad connectors*
• (52) #3 Phillips size 14, 1-inch screws

*NOTE:

Connectors can be found in the back of panels. Screws are typically in a recess in the back of a panel. For larger sizes, addtional screws and connectors will be in a smaller box inside the box, or shipped separately.

Multiple package shipments may be delivered on different days. Please be sure to check package contents when your package arrives to ensure that you have all needed components.
